TechEdge 12U Wall Mount Rack
119-6040
- Mounting hardware included: (20) 12-24 screws, (20) cage nuts, (8) drywall anchors
- Self-squaring for easier installation
- Square holed
- Mounting depth 18.05"
- Stud center mounting holes 16" apart
- Constructed of high quality 14 and 16 gauge steel
- Corner brace attachments enhance stability
- 200lb capacity
- Front mount up to 12U of rack equipment

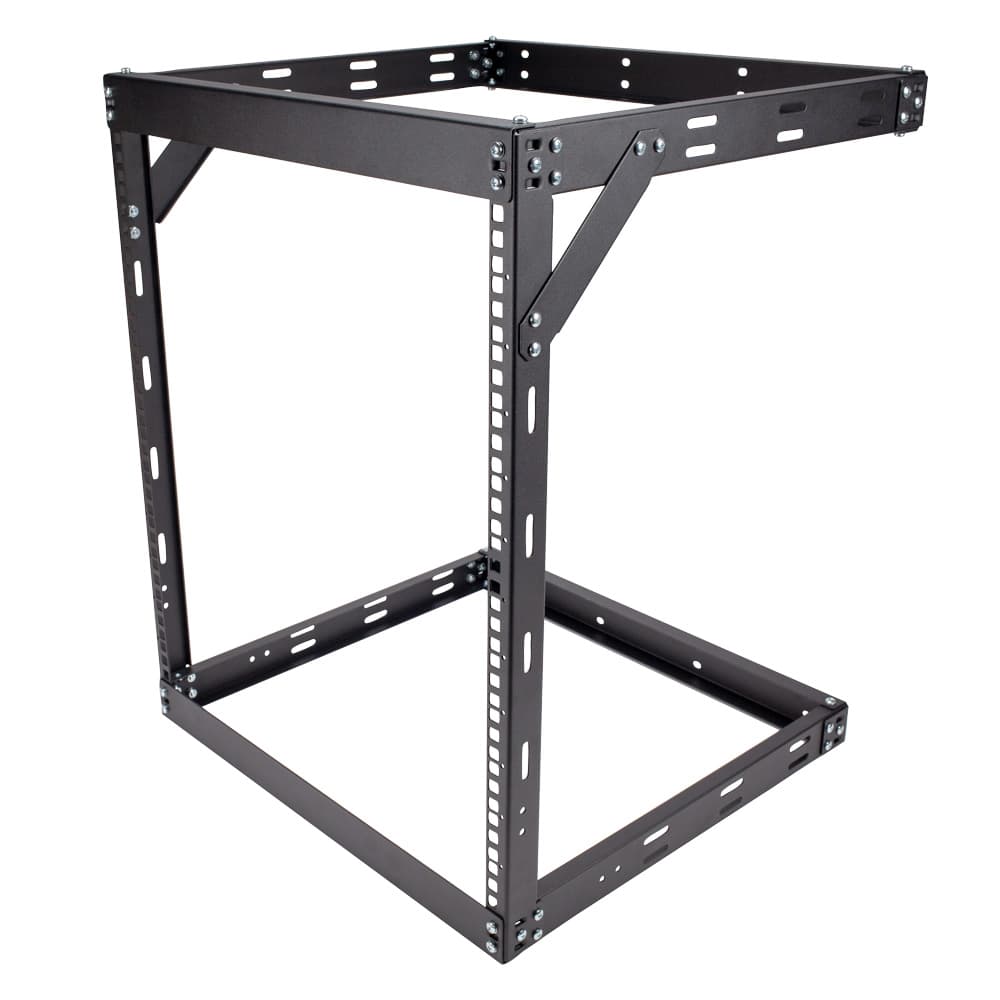

The 12U TechEdge WallMount Rack is designed to mount EIA-standard 19-inch rack equipment in areas with limited floor space where you need equipment to be secure and out of the way. The TechEdge 12U Wall Mount Rack is self-squaring for easier installation. Included mounting hardware includes (20) 12-24 screws, (20) cage nuts, (8) drywall anchors. Constructed from heavy-duty 14 and 16 gauge steel with a durable black powder-coated finish, the rack has a maximum weight capacity of 200 lbs with a mounting depth of 18.05" and is square holed. Wall mounting stud holes are 16" apart located on the back of the rack.
| SKU | 119-6040 |
|---|---|
| HARDWARE | Included |
| RACK HOLE TYPE | Square Hole |
| RACK TYPE | Wall Mount Rack |
| RACK HEIGHT (U SPACE) | 12U |
| RACK WIDTH | 19" |
| ROHS COMPLIANCE | Yes |
