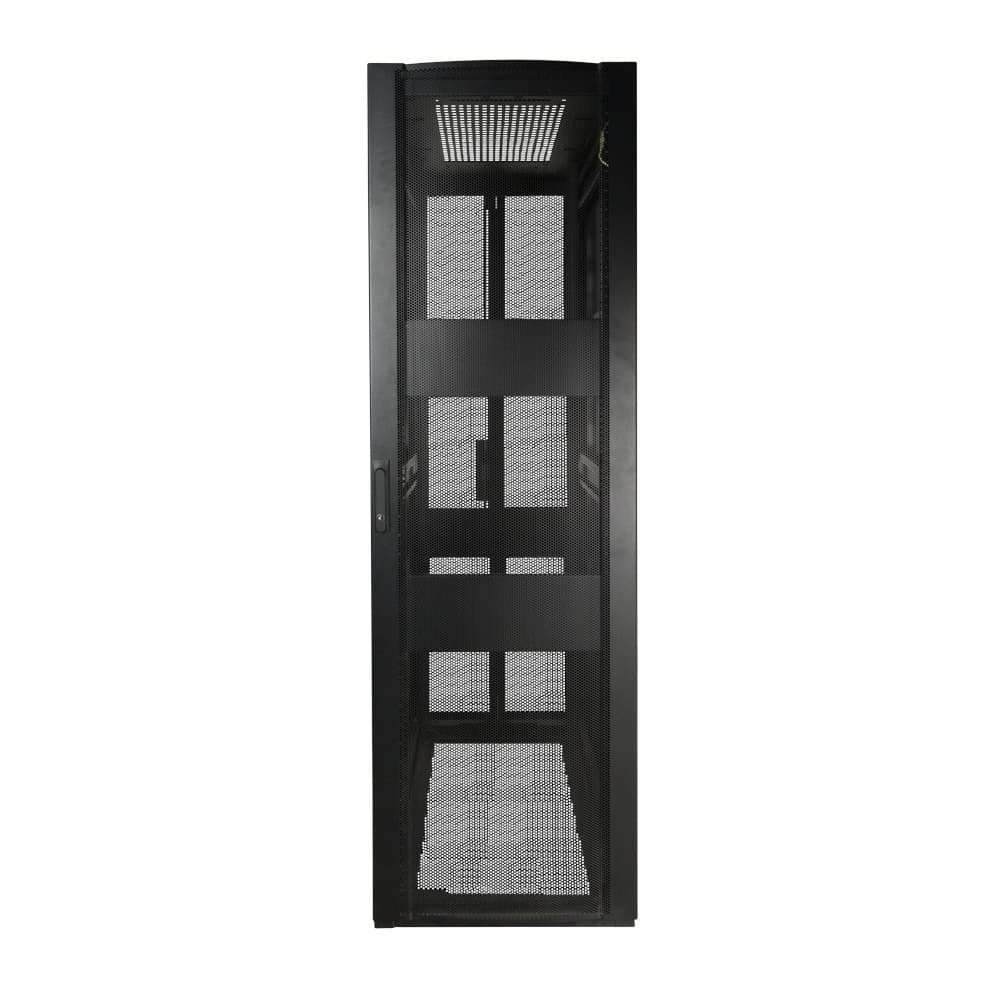

42U Seismic Rack Cabinet 600mm 1070mm (desktop image)42U Seismic Rack Cabinet 600mm 1070mm (mobile image)

42U Seismic Rack Cabinet 600mm 1070mm

P/N: 180-5260-G

  • 42U with a depth of 1070 mm and a width of 600 mm
  • Outside Dimensions (H x W x D): 78.5" x 23.6" x 42.1" (1994 mm x 600 mm x 1070 mm)
  • 3,000 lbs static weight capacity
  • Meets EIA-310-D and NEBS Seismic Zone 4 requirement standards
  • Integrated tool-less button mounting for vertical PDUs and cable management units
  • Adjustable uprights
  • Integrated grounding system
  • Pre-installed baying kit
  • Doors are perforated for optimum airflow
  • Single locking front cabinet door with curved surface for added stability
  • Rear door of cabinet is split, making access easier in tight spaces
  • Two pairs of split, locking and removable side panels. Split panels are more versatile for removing
  • 4 Post 19" rack in EIA-310 compliant square hole punched uprights with rack unit markings
  • Easy to remove cable pass throughs on top panel
  • Two removable cable access panels on top for additional cable entry
  • 1 pair of stabilizing brackets
  • Ships fully assembled

Our Lone Star Racks 42U Seismic Rack Cabinet is compatible with any EIA 19” standard rack equipment. It has a height of 42U and a width of 600 mm. Inside the rack includes two tool-less PDU cable trays for cable management. Both front and rear doors are lockable, removable, and reversible. The doors are also perforated allowing optimum airflow. The Lone Star Racks seismic rack is a 4 post enclosure that meets the Telcordia GR-63-CORE Network Equipment & Building Systems (NEBS) requirements for Zone 4 Seismic Earthquake Environments.The rack is constructed in 16 gauge steel. Each rack has a weight capacity of 3,000 lbs.

RoHS ComplianceYes
Rack Depth1070 mm (42")
Rack Hole TypeSquare Hole
Rack Type4 Post, Enclosed
Rack Height (U Space)42U
Rack Width600 mm (23.7")
Rack CastersNo
