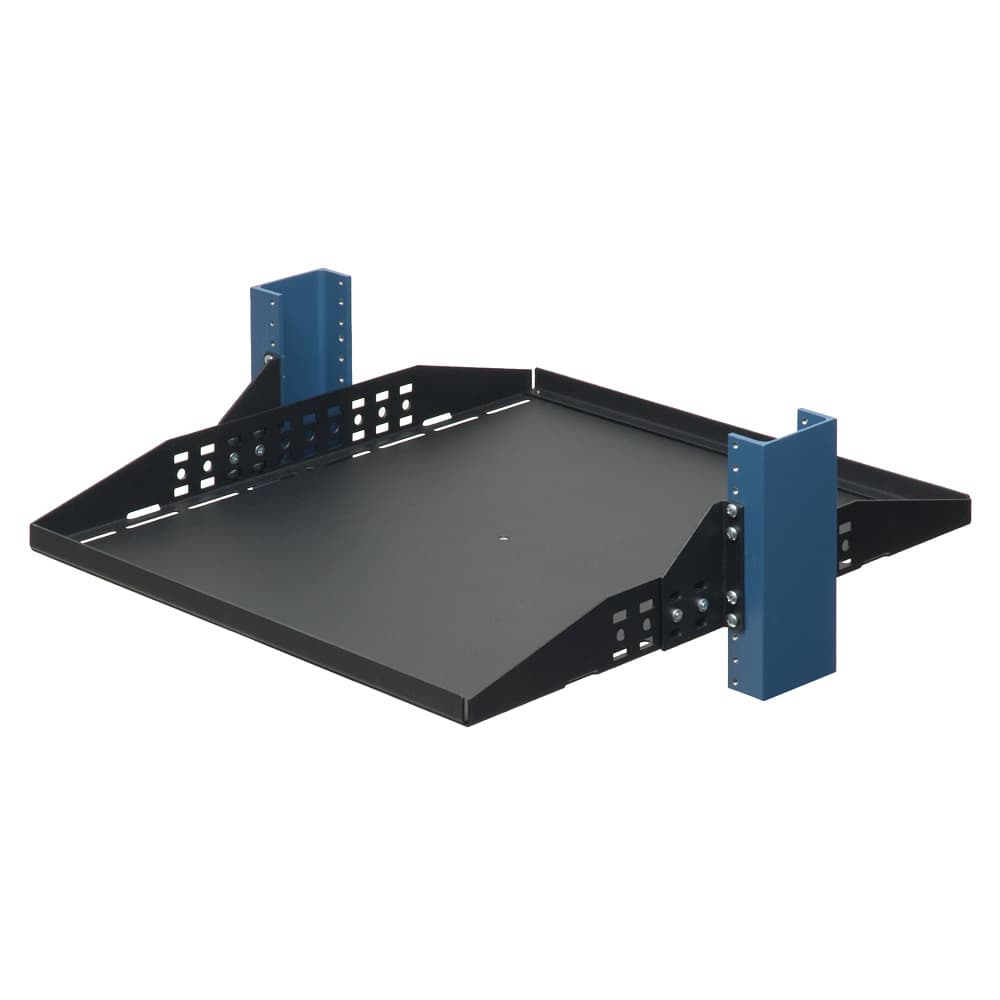

20" Configurable Relay Rack Shelf, Solid
P/N: 2USHL-020FULL-20S
- Fits square, round, and threaded holes
- Cantilever shelf
- Mounts to any 4Post or 2Post rack
- Adjustable mounting depth
- Weight capacity: 150 lbs (68 kgs)
- Includes 10-32 & 12-24 pan head screws
The 20” Configurable 2 Post Rack Shelf has a surface area of 20” x 17.375” (508 x 441 mm) and can be recessed/extended in 1” increments. This cantilever shelf is made from 16 GA steel and has a weight capacity of 150 lbs (68 kgs), allowing it to support a wide variety of equipment. The 20” Configurable 2 Post Rack Shelf can be mounted up-side-down and has flanges that can be positioned up or down or be removed.
| SKU | 2USHL-020FULL-20S |
| Rack Type | 2 Post |
| RoHS Compliance | Yes |
| Shelf Type | Fixed Shelf |
| Hardware | Included |
| U Height | 1U-2U |
| Rack Hole Type | Round Hole, Square Hole, Threaded Hole |
